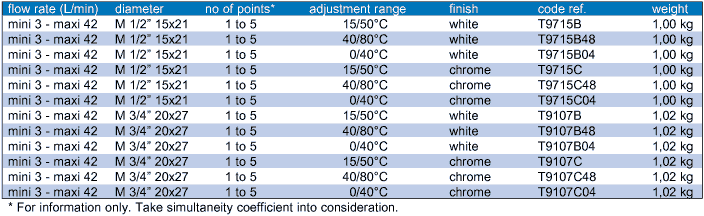

Group installation, 1 to 5 outlets, flow up to
42 l/min
T9715 - 1/2"
B (white body) or C (chromed)
T9107 - 3/4"
B (white body) or C (chromed)
FEATURES
Comfort
: the water temperature obtained is accurate to within one degree. Individually
checked in the factory, Trubert mixing valves must be calibrated before first
use. An exclusive knob mounting system makes this calibration easy. Temperature
regulation and stability are excellent, regardless of variations in pressure
(max. 1.5 bar), mixing valve inlet temperature and flow rate.
Extremely straightforward to install
: no special tools are required ; the hot water inlet is fitted on the left,
with the mixed water outlet in vertical position. Trubert mixing valves can
be placed in various positions without making the temperature difficult to
read...
Scald protection : the hot water
is rapidly cut if the cold water supply is interrupted.
Very easy maintenance : the durability
and scale resistance of Trubert mixing valves ensure that maintenance is virtually
nil. The cartridge can be easily replaced without dismantling the mixing valve.
Simple to install. Economical to use.
Cartridge
can be removed and replaced (for easier scale removal and disinfecting). Integral approved check-valves
(withstanding temperatures above 90°C). Various thermal flash possibilities : use in the 40/80°C range or remove the temperature knob
