Applications

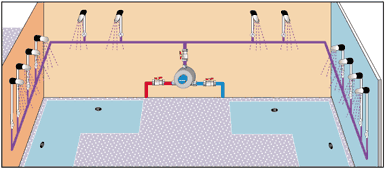

Group installation, large multiple outlet (1 to 50 outlets),
flow up to 400 l/min

ULTRAMIX : TX91, TX92, TX93, TX94, TX95, TX96

Thermostatic mixing valves with a double regulation.
Water mixing is obtained by two independent valves - one for hot water, one for cold water - which operate like two hydraulic relays. These two valves are controlled by a bimetallic strip that records output water temperature.
The water runs at the exact desired temperature.
This operational principle provides many advantages, (please refer to page 2) and especially :
No friction from moving metal parts means excellent resistance to scale and remarkable longevity.
Thanks to the relay operational principle, low and high flow rates receive the same adjustment quality
--(which is not true of all solutions available on the market).
Rapid shut-off of mixed water supply if either the hot or cold supply fails.

FEATURES AND BENEFITS

Device with integrated check-valves (full approved) and strainers.
Recommended for all applications where the mixed water temperature must be kept exact and constant, and adjusted at any time.

Standard temperature range : 10° to 50°C
Available by request for no extra charge : 0° to 40°C, 30° to 70°C or 50° to 90°C.

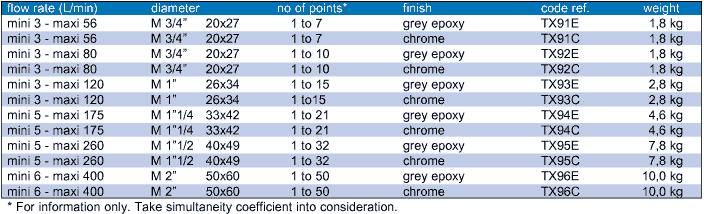

SPECIFICATIONS

Knob with built-in locking - front protective cover (grey PVC).
Blue calibrated knob.
Flow rates under 3 dynamic bar.
1 upper output.

Thermostatic mechanism : A guarantee of safety and proven reliability for over forty years, the ULTRAMIX thermostatic mixing valve mechanism is the same as that used in the former range. It is directly integral with the mixing valve cover.

Approved check-valves : Superior level hydraulic features, due to the valve closure member's overall design.

Filtering : Filter anchored on watertight elastomer support. Perfect accessibility, disassembly without tools, easy cleaning requiring no special qualification.

Simple to install. Economical to use.

PROTECTION AGAINST LEGIONELLA

There are only 2 methods recommended to fight the Legionella bacteria :
1 • raise the temperature up to 70°C (thermal shock)
2 • disinfect (chemical shock)

The ULTRAMIX range makes it possible to fight legionella bacteria because it is completely compatible with these 2 methods :

With the mixing valve as is, you can :

3 adjust temperature up to 70°C in circuit (by using a cartridge with temperature range 30 to 70°C on request).
--And/or by placing the cartridge in the "RINSE" position (turned over and fastened upside down
--- see simple standard operating procedure supplied in box), you can also :
3 rinse the mixing valve and piping (important operation before activation).
3 inject a disinfectant (chlorine) into the water supply system without danger of damaging
---the thermostatic mechanism, as it is no longer in contact with the water.
3 carry out thermal shock at over 70°C, without danger of damaging the thermostatic mechanism
---as it is no longer in contact with the water.


Take off the knob, cover, and screw. Remove the cover/cartridge from its casing.	Place the flat washer (included in package) on the device's neck.	Place the cover/cartridge unit upside down on the device and flat washers	Tighten the temporary screws (included the package). The valves act now as a “dummy valve”

Top of page

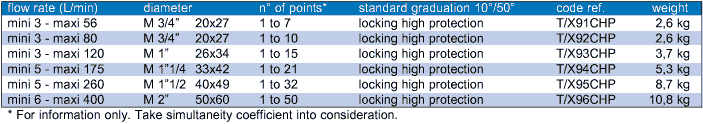

ULTRAMIX High Protection mixing valve - Vandalism and tamper-proof.

Mixing valves designed specifically for Institutions applications.

The body and the metallic wall plate are chromed finished.

Standard temperature range : 10° to 50°C.
Available by request for no extra charge : 30° to 70°C.
